Factory Direct Sales Automatic Coiling Machine Transformer Coil Winding Machine

Brand Name : STT

Model Number : ZPX400

Certification : CE, etc

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 35 days

Packaging Details : seaworthy packing

Name : transformer coil winding machine

Function : winding wire coil

Wire material : copper or aluminium wire

Wire type : flat or round wire

Wire guide : 1 pc

Color : as requested

Winding power : 2.2kw

Rotating speed : 0 ~ 200rpm

Contact Now

Factory Direct Sales Automatic Coiling Machine Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX400

Transformer coil winding machine ZPX400 is a special winder for winding copper or aluminium wires. The wire coils wound by the transformer coil winding machine can be used in transformers or other similar products. The transformer wire guide is provided with a servo motor to drive the wire guide, which guarantees the precision of the move of the wire guide. The maximum winding width of the transformer coil winding machine is 400mm. With PLC control system and HMI, it is very easy to operated the transformer coil winding machine.

Quick details of transformer coil winding machine ZPX400

2.2kw motor
Maximum winding speed 200rpm
PLC based control system
Winding flat or round wire
pneumatic system
Foot pedal

Technical parameters of transformer coil winding machine ZPX400

Typical standard specifications of transformer coil winding machine ZPX400 are shown below and the transformer coil winding machine can also be manufactured as requested.

Center Height:	900mm
Tailstock:	Triangle supporter
Winding Motor Power:	2.2kw
Winding Speed:	0 ~ 200rpm
Speed Regulation:	Stepless
Control System:	PLC
Flat Wire Maximum:	2.0x8.0mm
Round Wire Diameter:	Φ0.3 ~ Φ4.0mm
Maximum Winding Width:	400mm
Maximum Rotation Diameter:	500mm
Minimum Spread Pitch:	0.01mm
Basic Function:	5-digit counting
Counting Turn Range:	0 ~ 9999.9

Factory Direct Sales Automatic Coiling Machine Transformer Coil Winding Machine

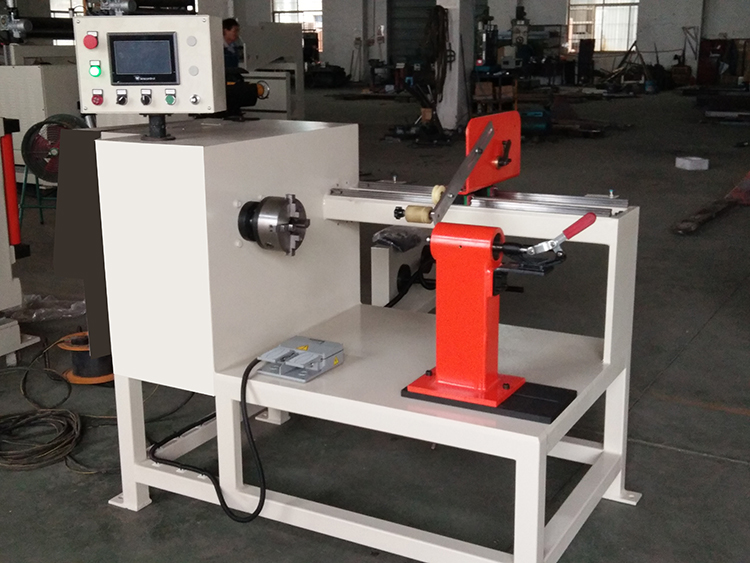

Fig 1: Transformer coil winding machine ZPX400's front view

Fig 2: Transformer coil winding machine ZPX400's 4-jaw chuck
