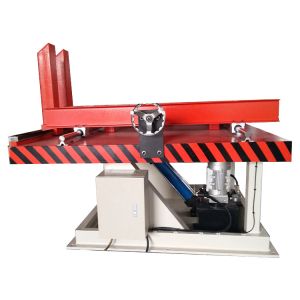

Automatic Hydraulic Driven Transformer Core Stacking Table Tilting Function

Brand Name : STT

Model Number : FZT-3T

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 35 days

Packaging Details : seaworthy packing

Name : transformer core stacking table

Function : stacking and tilting core

Table size : 1600x1400mm

Table height : 1000mm

Max. capacity : 3000kg

Driving mode : hydraulic

Color : as requested

Warranty : 12 months

Contact Now

Automatic Hydraulic Driven Transformer Core Stacking Table Tilting Function

Description of transformer core stacking table FZT-3T

Automatic hydraulic FZT-3T is mainly used to stack transformer iron core. After the core stacked, the table can tilt up the stacked core to 90° for taking away the stacked iron core easily. The transformer core stacking table adopts hydraulic driving for tilting and the tilting speed can be adjusted. The transformer core stacking table features easy operation, tilting smoothly and so on.

Quick details of transformer core stacking table

The table size:1600x1400mm
Table height:1000mm
Power: 1.5kw
Color: optional

Main Components of transformer core stacking table

Main frame
Hydraulic station
Linear guide
Control panel

Main Parameters of transformer core stacking table

Typical standard specifications of transformer core stacking table FZT-3T are shown below, however these can be easily modified as requested.

No.	Item	FZT-3T
1	Table Size(LxW):	1600×1400mm
2	Table Height:	1000mm
3	Max. Capacity:	3000Kg
4	Max. Stacking Thickness:	900mm
5	Tilting Mode:	Hydraulic
6	Tilting Speed:	90°/Min(Stepless speed regulating)
7	Distance Between Columns:	Adjustable
8	Main Power:	1.5KW
9	Warranty:	12 months
