Automatic Copper Foil Winding Machine Servo Motor Driven PLC Control

Brand Name : STT

Model Number : BRJ600-2-2

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : seaworthy packing

Name : reactor foil winding machine

Usage : making reactor coil

Al foil thickness : 0.3 ~ 3.0mm

Cu foil thickness : 0.2 ~ 2.0mm

Welding : TIG

Control system : PLC

Color : optional

Warranty : 1 year

Contact Now

Automatic Winder Servo Motor Driven PLC Control Reactor Copper Foil Winding Machine

Description of copper foil winding machine BRJ600-2-2

Reactor copper foil winding machine BRJ600-2-2 is a special reactor coil making equipment, which is mainly used to wind reactor foil coils and other similar products. Two servo motors are adopted to drive the machine, which makes the two ends have the same torque. This kind of copper foil winding machine is with two chucks and the foil is wound on the core directly. The copper foil winding machine is provided with photoelectric sensor to correct the position of the foil when winding. The foil winding machine is with PLC control system. With a touch screen, it is very easy to operate the foil winding machine.

Quick details of copper foil winding machine BRJ600-2-2

Two servo motor driving
Two chucks clamping iron core
Foil material ID 500mm
Maximum foil material OD 1000mm
Winding speed 26rpm
Winding power 11kw
TIG welding
Customized color

Technical parameters of copper foil winding machine BRJ600-2-2

Typical standard specifications of BRJ600-2-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.

Foil width:	250 ~ 600mm
Max. Finished Coil OD.:	850mm
Finished Coil Shape:	Round, Rectangular, Oval, etc.
Conductor Strip Material:	Copper or Aluminum
Al Strip Thickness:	0.3 ~ 3.0 mm
Cu Strip Thickness:	0.2 ~ 2.0 mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Length:	650mm
Foil Decoiler Expanding Range:	420 ~ 520mm
Max. Coil Weight:	1,000KG
Motor Power:	5.5KW x 2
Max. Winding Speed:	26 rpm
Welding System:	TIG
Insulation Decoiler Number:	2 pcs
Insulation Decoiler Width:	650mm
Insulation Decoiler Shaft:	pneumatic open/close action
Edge Alignment System:	Photoelectric sensing
Control System:	PLC
User interface:	10 inches (254mm) touch screen
Counting Turn Range:	0 - 9999.9

Automatic Copper Foil Winding Machine Servo Motor Driven PLC Control

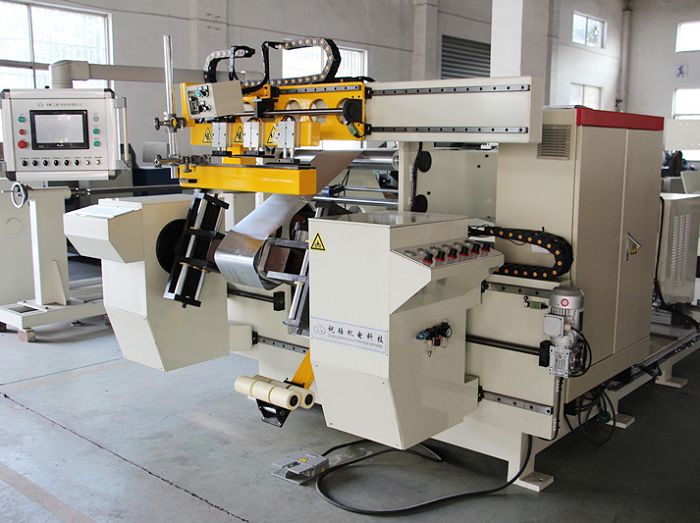

Fig 1: Copper foil winding machine BRJ600-2-2's front view

Automatic Copper Foil Winding Machine Servo Motor Driven PLC Control

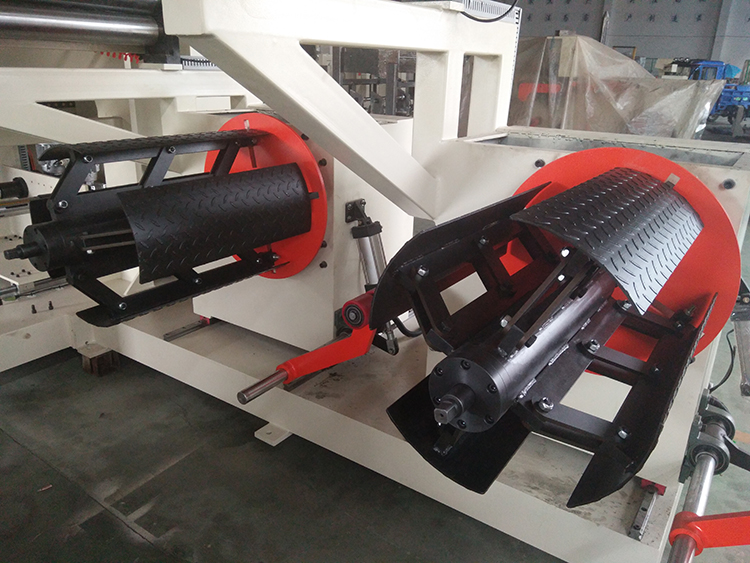

Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler

Automatic Copper Foil Winding Machine Servo Motor Driven PLC Control
