Automatic Copper Foil Winding Machine Making Dry Type Low Voltage Transformer
Description of copper foil winding machine BRJ1400-2
Dry type transformer copper foil winding machine BRJ1400-2 is one professional equipment for winding coils for cast resin transformer and other similar products. The kind of copper foil winding machine, i.e. Máquina de bobinado de láminas de aluminio, can handle one or two layers of copper film or aluminium foil with width from 300mm to 1400mm. The copper foil winding machine can also wind one or two layers of layer insulation paper along with foil. With automatic TIG welding unit, the foil winding macihne can weld the conductor foil with the bus bar together. Moreover, the copper foil winding machine can be customized as requested, such as the foil decoiler expanding range. Usually, the foil decoiler expanding range is from 420 to 520mm, which is suitable for the conductor foil with inner diameter 500mm. The control system is based on PLC.
Main Components of copper foil winding machine BRJ1400-2
1. Main frame, iron welded frame is very strong and stable
2. Winding unit, with 22kw motor, providing high torque
3. Foil decoiler, two foil decoiler suitable for conductor foil with inner diameter 500mm
4. Insulation decoiler, two insulation decoiler for placing insulation paer with ID 76mm OD 400mm
5. End-filling strip feeder, eight holder for end insulation filler
6. Cleaning system, two sets
7. Cutting system, one set
8. Foil deburring system, two sets.
Technical Parameters of copper foil winding machine BRJ1400-2
Typical standard specifications of copper foil winding machine BRJ1400-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,400mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Diameter: | adjustable range Ø400 ~ 520mm |
| Max. Coil Weight: | 2,000KG |
| Welding Mode: | TIG |
| Cutting Mode: | Rolling shear |
| Insulation Decoiler Number: | 2 pcs |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Rectification Precision: | ±0.5mm |
| Electronic Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Total Weight: | 8000Kg |
| Dimension(L x W x H): | 5800 x 2850 x 2500mm |

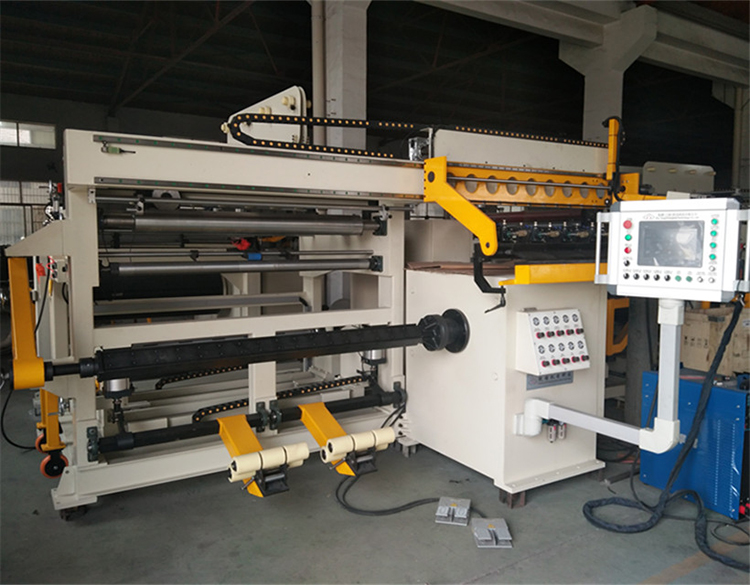

Fig 1: Copper foil winding machine BRJ1600-2's front view
Fig 2: Copper foil winding machine BRJ1600-2's insulation decoiler
